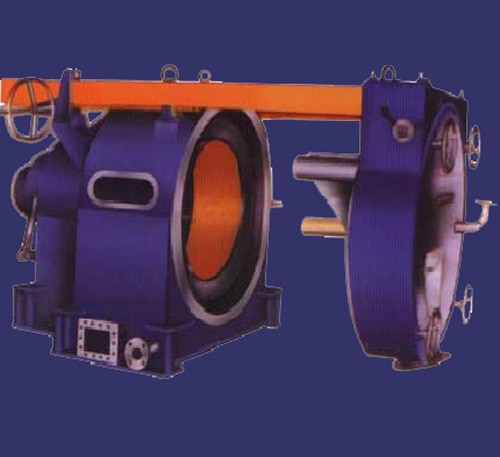

Horizontal Peeler Centrifuge

(Horizontal Discontinuous Separation)

Peeler centrifuge operates on the principle of centrifugal force to separate solids from liquids by density difference.

The high rotation speed provides high centrifugal force that allows the suspended solid in feed to settle on the inner surface of drum. The washing processes are performed at the same rotational speed and in same centrifuge vessel.

The unique feature of Peeler Centrifuge Horizontal Peeler Centrifuge is the constant basket speed which allows all operations like feeding drying discharging to be carried out at full basket speed.

Rotofilt Peeler centrifuges are offered both in the batch and continuous centrifuge processes. This process are determined to achieve maximum removal of solid from liquid that may be required to be as pure as possible and not be easily separated by differences their densities.
Application

Horizontal peeler Centrifuges are successfully used in Food Stuff, Pharmaceutical, Plastic, Organic Inorganic Chemicals Industry for separating solids from solid liquid slurry with 5 to 50% solids contents and particle size ranging from 2 microns to 10 mm. Products which are difficult to filter or decant can be easily separated using Peeler centrifuge.

Peeler Centrifuge is used for:

AlumiAmino acids, benzoic acid, benzene, hexachloride, calcium hypo chloride hexachlorocyclohexane insulin, potassium bisulphate, sodium perborate, penicillin, sulphur, starch, etc.
Process

The unique feature of Horizontal Peeler Centrifuge is the constant basket speed i.e. all operations like feeding, drying discharging etc. are carried out at full-basket-speed. The sequence of Operations can be (either semi or fully automatically) controlled by Electro-hydraulic control panel / PLC controller

Typical Process Cycle

    Feeding: The Suspension is fed from the Storage tank to the basket rotating at full operational speed
    Removal of mother liquor: Under the influence of the centrifugal force the Liquid is drained from the solids, through filter elements (usually filter cloth). The solids are collected as ‘cake’ in the basket.
    Washing:  If required, in order to remove the traces of mother liquor washing facility can be provided to thoroughly wash
    the solids during separation.
    Re-drying: After giving wash or other treatment solids are further allowed to dry.
    Discharging: Solids are ‘peeled’ off by means of full-basket-width scrapper and is discharged through chute in front cover of
    the machine or conveyed by discharged screw.

Design Features

    Gas-tight up to 0.04 bar overpressure, or
    Labyrinth shaft seal
    Automatic heel cake adjustment
    Oil-lubricated bearings
    Solids discharge by chute or by screw conveyor
    Drive: electric motor and V-belts, or with hydraulic drive with variable or constant speed
    Automatic and manual operation with either microprocessor or pneumatic controller
    Explosion proofing and safety devices
    Separation of Drive area / Process area
    Removal of shaft from the rear
    Easy cloth changing
    Through wall construction

Working Principle

    Batch operation
    Fixed or variable speed
    Feed controlled by filling valve
    Filling by gravity or pump
    Basket filling monitored by filling level controller
    Intensive cake washing is possible with a variety of fluids
    Cake removal by hydraulically powered scraper over full basket width
